Progressive Components provides Mold-Ready Bar Locks.

The Male Bar Lock can be cut to a specific length with radii added, while the Guides can have corner radii added on both parts in the set.
-For Bars cut to length, specify the prefix of the Bar and the finished length. Ex. BLB100L4.56.
-For Bars cut to length with pocket radii, specify the prefix of the Bar with the finished length and add -R to the end of the catalog number. Ex. BLB100L4.56-R.
-For Bars with pocket radii in standard lengths, specify the full catalog number of the Bar, add -R to the end. Ex. BLB100L6-R.
-For Guides with corner radii on both parts, add -R to the end of the catalog number. Ex. BLG150L2.8-R. Refer to the catalog page for additional specifications.

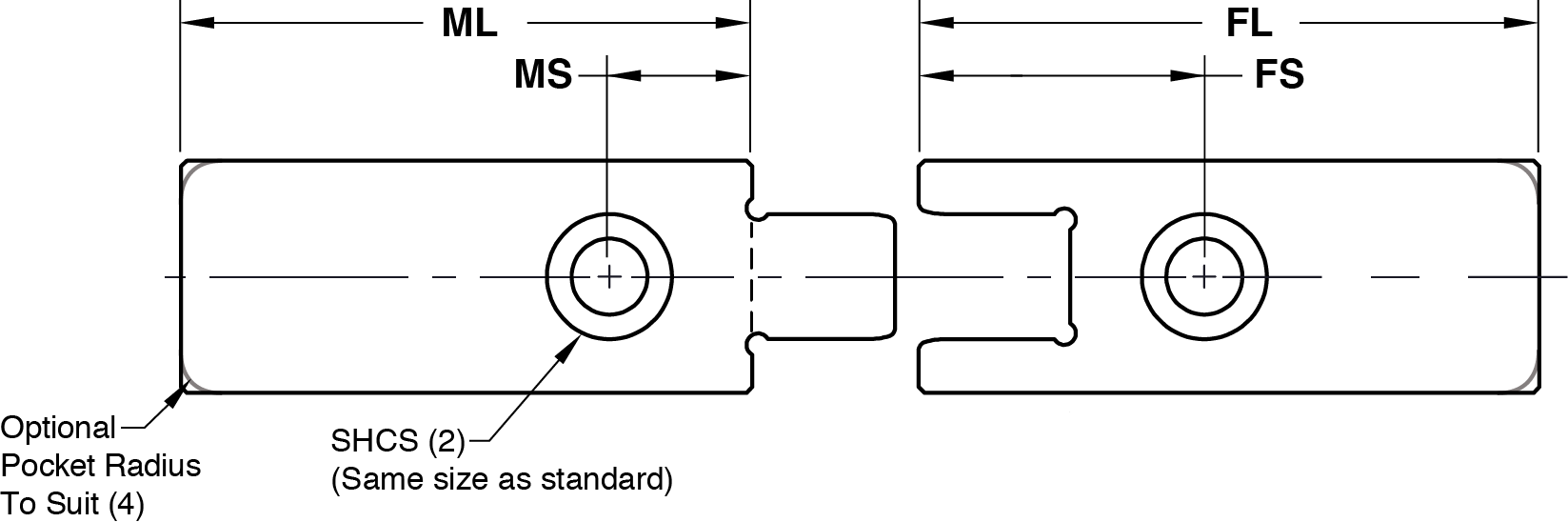

Flat Cavity Interlocks can be ordered with alternate screw locations, also cut to a specific length with or without pocket radii.
To order: ML=Male Length MS=Male Screw Location (Will be on center.) FL=Female Length FS=Female Screw Location (Will be on center.)
Pocket Radius: If required, add “-R” to the specification. (Radius is designed to suit Interlock size.)
Cavity Interlock
Click on the catalog page image at the right to download a printable PDF file.

To access the complete Progressive Components Catalog in PDF format, please click HERE.

To request a printed copy of our most current catalog, please click HERE.
  • CATALOG NUMBER
  • Product Description
  • CAD FILES
  • PRICE
  • QUANTITY
  • BAR LOCK SPECIALS: SELECT THE QUANTITY AND SPECIFY THE CONFIGURABLE PART NUMBER (AS SHOWN IN THE EXAMPLES AT THE TOP OF THE PAGE) IN THE "NOTES" AREA OF THE CART.
  • BL-SPECIAL
  • Bar Lock: BLBXXXLXX / BLGXXXLXX
  • Downloads
  • TBD
  • Add
  • FLAT CAVITY INTERLOCK SPECIALS: SELECT THE QUANTITY AND SPECIFY THE VARIABLES THAT WILL BE MODIFIED IN THE "NOTES" AREA OF THE CART.
  • CF-SPECIAL
  • Cavity Lock Special: XXX
  • Downloads
  • TBD
  • Add
