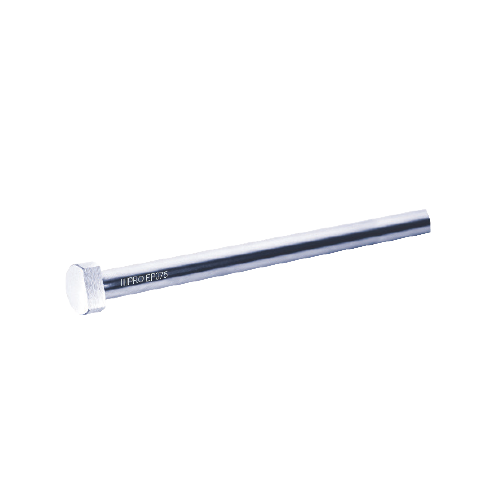

Progressive Components can provide Mold-Ready Ejector Pins, Core Pins, and Blade Ejectors. Pins and Blades can be Cut-to-Length, with or without Keyed heads.
Some standard Inch Ejector Pins are available Keyed 'off the shelf' with the key tangent to center. Click
here.
To order Keyed heads tangent from center, add a -K to the standard item number. For a specific distance from center, follow the examples and graphics listed below:
-EP437L10-K.250 for a 7/16" diameter Ejector Pin with a flat 1/4" from center
-CPH125L6-K.094 for a 1/8" diameter Core Pin with a flat ground 3/32" from center
To order Cut-to-Length Pins, with or without Keyed heads, specify the length required after the standard catalog numbers, following the examples below:
-EP437L6.25-K.250 for a 7/16" diameter pin x 6.25" long with a flat 1/4" from center
-CPH125L5.25 for a 1/8" Core Pin cut to 5.25" long
Black Nitrided and Chrome Plated Pins are also available by selecting the EPBN or EPL item code for Ejector Pins and CPPL for chrome plated Core Pins following the instructions below.
If specific materials or other dimensions require modification, please refer to the custom templates
here.
